Not All CRISPR Kits Are Created Equal: How to Choose the Right Knockout Kit

How Does CRISPR Work to Knock Out Genes

CRISPR (Clustered Regularly Interspaced Short Palindromic Repeats) is a powerful gene editing tool originally derived from bacterial immune systems. It acts as a pair of molecular scissors, allowing scientists to precisely cut and rewrite DNA at specific locations. The system is composed of two main components:

• A Cas (CRISPR-associated) nuclease that cuts DNA
• A guide RNA (gRNA) that directs the nuclease to the target sequence

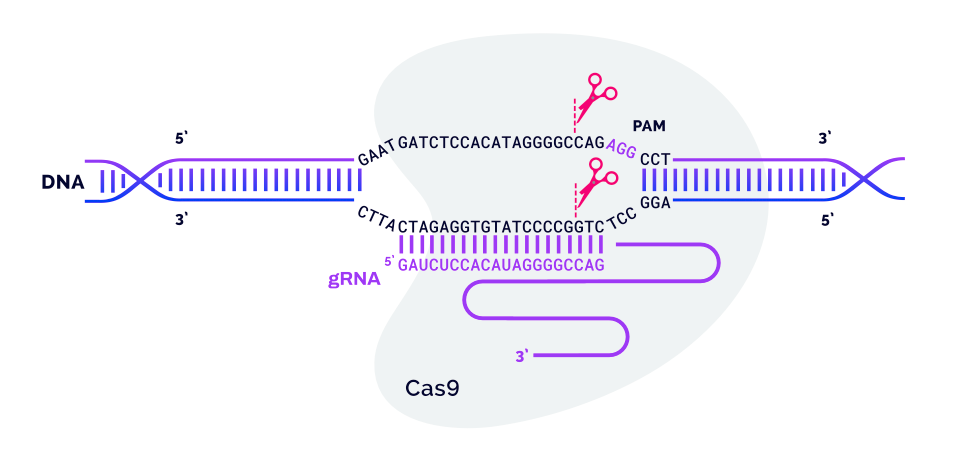

Figure 1. The CRISPR-Cas9 System. The CRISPR-Cas9 system comprises a guide RNA (gRNA) and Cas9 nuclease, which together form a ribonucleoprotein (RNP) complex. The presence of a specific protospacer adjacent motif (PAM) in the genomic DNA is required for the gRNA to bind to the target sequence. The Cas9 nuclease then makes a double strand break in the DNA (denoted by the scissors). Endogenous repair mechanisms triggered by the double strand break may result in gene knockout via a frameshift mutation or knock-in of a desired sequence if a DNA template is present.

By leveraging this simple yet powerful system, researchers can edit genomes with unprecedented ease, enabling breakthroughs in areas such as disease modeling, drug discovery, and personalized medicine.

When Cas9 introduces a double-stranded break (DSB), cells typically repair the damage via non-homologous end joining (NHEJ), a process that often introduces insertions or deletions (indels). If these indels occur in the coding region and result in a frameshift, the gene is functionally knocked out.

Gene knockout is foundational in modern biology. And while CRISPR has made knockout experiments more accessible, not all kits on the market deliver the same results. Whether you're just starting out or scaling up a high-throughput workflow, choosing the right CRISPR kit can make or break your experiment.

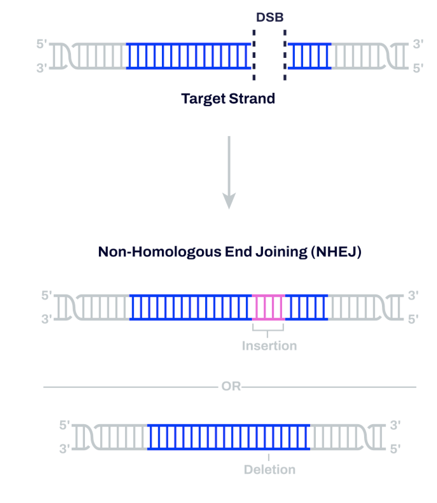

Figure 2. CRISPR knockout through non-homologous end joining (NHEJ). The two most common repair mechanisms facilitating CRISPR-Cas editing are nonhomologous end joining (NHEJ) and homology-directed repair (HDR). NHEJ results in either insertions or deletions of nucleotides to repair the DSB, creating a frameshift mutation and effectively knocking out the gene.

CRISPR Guide Design: How to Ensure Efficient Knockouts

Designing an effective sgRNA is one of the most critical steps in ensuring CRISPR knockout success. Several sequence features and biological constraints should be considered when selecting your guides:

1. PAM Compatibility
   Each Cas nuclease requires a specific PAM (Protospacer Adjacent Motif) sequence to bind and cut DNA. The choice of Cas protein directly determines where in the genome editing is possible. For example: SpCas9 requires a 5′-NGG-3′ PAM. The guide RNA sequence must target a region adjacent to the appropriate PAM, but the PAM itself is not part of the sgRNA.


2. Guide Length & Specificity
   Typical sgRNAs are 17–23 nucleotides long, depending on the Cas nuclease. Shorter guides can reduce off-target risk, but excessively short guides may lose specificity.


3. GC Content
   GC content influences guide stability and binding. Optimal GC content falls between 40–80%, with overly high or low content potentially reducing efficiency or specificity.


4. Off-Target Considerations
   Mismatches between the sgRNA and genomic DNA can lead to off-target cleavage. Mismatches near the PAM tend to be more impactful. Designing guides with minimal sequence similarity to other genomic regions helps mitigate this risk.


5. Functional Positioning
   Targeting early constitutive exons increases the likelihood of a complete gene knockout. Guides should ideally be positioned in regions shared across all isoforms and upstream of critical functional domains.


6. Redundancy and Optimization
   Because guide performance can be variable and context-dependent, designing and testing multiple sgRNAs per gene is often necessary to ensure effective knockout.

Why does guide design strategy impact CRISPR knockout success

Many CRISPR knockout kits rely on either a single sgRNA targeting one site, or a pooled approach using multiple independent guides that target different locations within the same gene, without coordination to induce a defined deletion. These strategies rely on a single gRNAs to introduce random indels (insertions or deletions) at one site, which may or may not disrupt gene function. Our approach is different.

We multiplex three gRNAs per gene, designed to work cooperatively to delete a defined genomic fragment, maximizing knockout efficiency through a synergistic fragment deletion strategy.

Why it works:

• Strategic spacing: Each guide is positioned to increase the likelihood of cooperative binding and cutting, promoting reliable deletion formation.
• Lower required concentration: Because the guides work synergistically, high gRNA doses aren’t needed, minimizing toxicity and off-target effects.

• Resilience to variation: The 3-guide design buffers against SNPs or structural variants, making it robust across different cell types, donor genomes, and levels of heterozygosity.


Smart design principles:

• Optimized spacing: Pairwise end-to-start and cut site-to-cut site distances are tuned to encourage fragment deletion. If ideal spacing isn't possible, a two-guide construct is used.
• Off-target minimization: We select guides with predicted off-target scores below (0, 0, N), prioritizing designs with minimal off-target risk.
• Transcript-aware targeting: Guides target exons conserved across all major transcripts. When needed, intronic guides downstream of critical exons are included.
• Early exon targeting: Deleting early coding regions increases the chance of a functional knockout across all isoforms.

Figure 3. XDel design includes up to 3 modified sgRNAs (grey bars) that target a single gene of interest. When co-transfected, the sgRNAs create concurrent double-stranded breaks at the targeted genomic locus and consequently induce one or more 21+ bp fragment deletions.

Why XDel Design Improves Knockout Reliability

Our XDel design consistently outperforms single-gRNA approaches, with higher editing efficiencies and more complete gene disruption. Our large, defined deletions ensure a full loss-of-function phenotype, validated across a range of genes and cell types.

We’ve also engineered XDel design to minimize off-target risks, making it the most powerful CRISPR knockout strategy available.

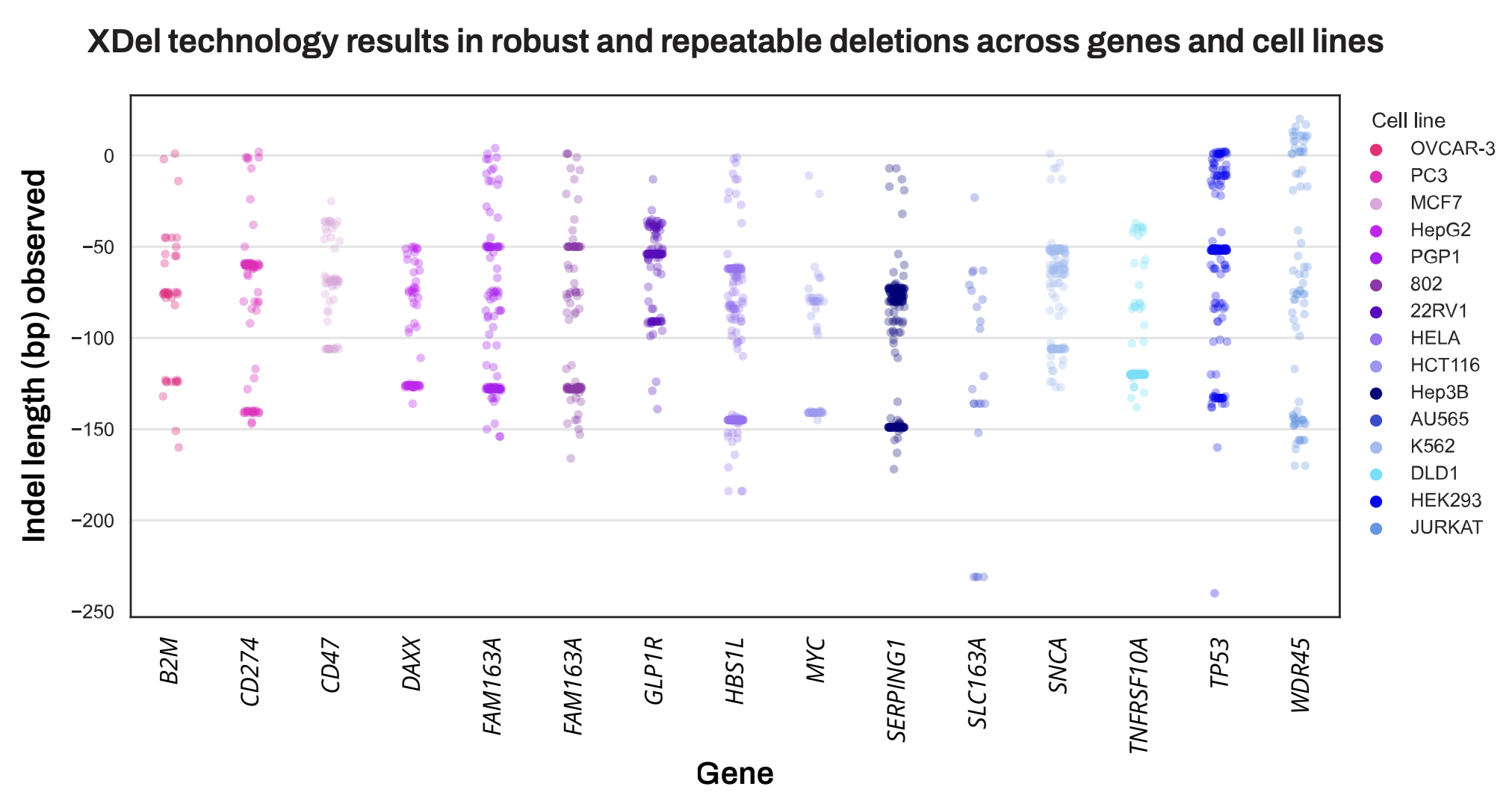

Figure 4: XDel’s large fragment deletions span a distance that enables efficient genotyping through targeted next- generation amplicon sequencing. Dot plot of indel lengths (bp), including large fragment deletions, observed (y-axis) for 14 genes (x-axis) targeted by XDel guides across 1,249 total clonal samples isolated from 15 different cell lines (colors).

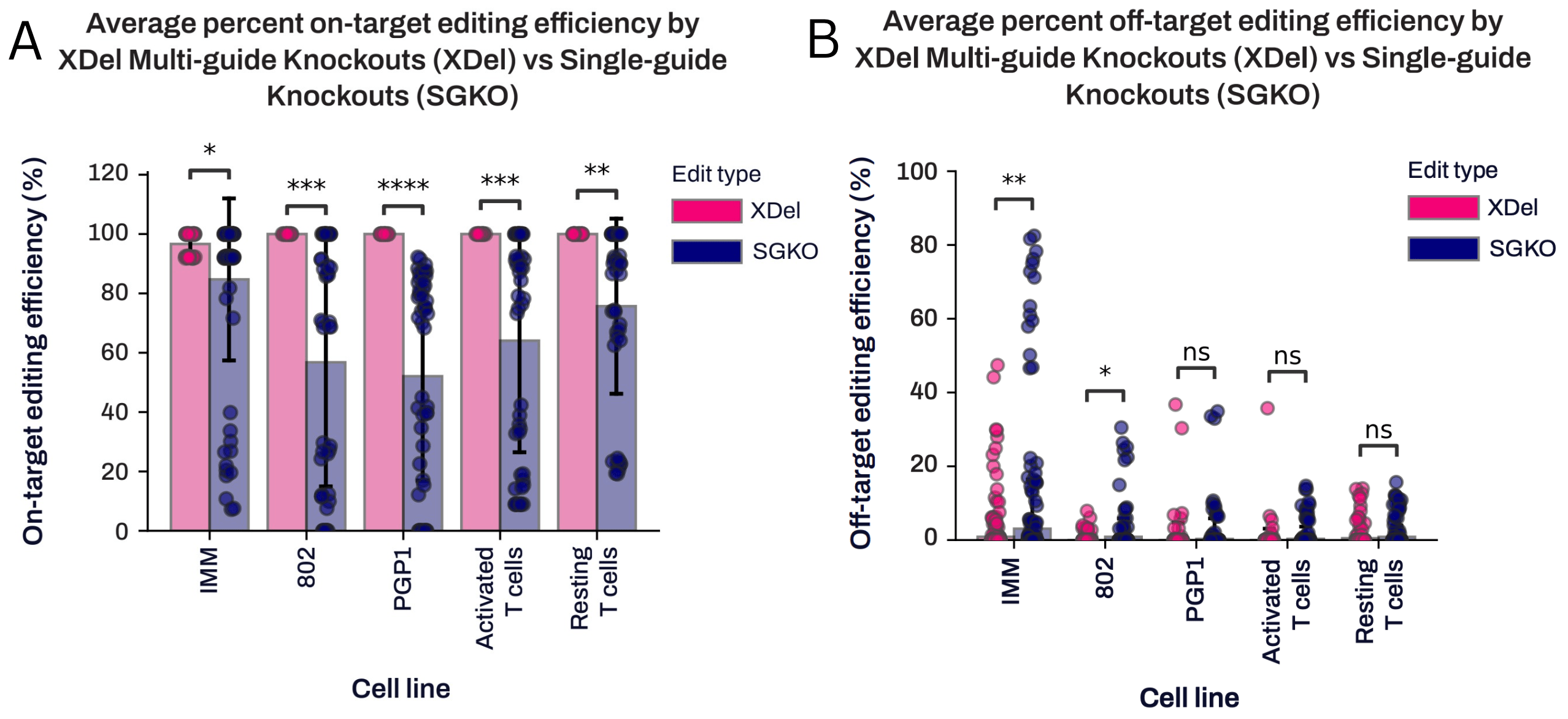

Figure 5. (A) Bar chart shows significantly higher on-target editing efficiency with XDel (pink) compared to single sgRNAs (blue) across 7 genes in 6 cell types (B) Bar chart of average off-target editing efficiency (y-axis) of XDel design (pink) vs individual sgRNA (dark blue) across 63 off-target sites in 6 cell types.

CRISPR Editing Quality Control That Saves Time and Reduces Costs

Verification is often the bottleneck in CRISPR workflows. Many researchers are forced to design custom primers, run multiple PCRs and sequencing events to confirm whether editing occurred.

We designed XDel technology with simple QC in mind:

• Single amplicon genotyping: Easily verify your knockout with a single PCR reaction.
• Compatible with ICE: Use our free ICE Analysis Tool to quickly assess editing outcomes.
• No custom reagents required: Our GKO kits come with optimized primer sites built into the design, so validation is fast and frustration-free.

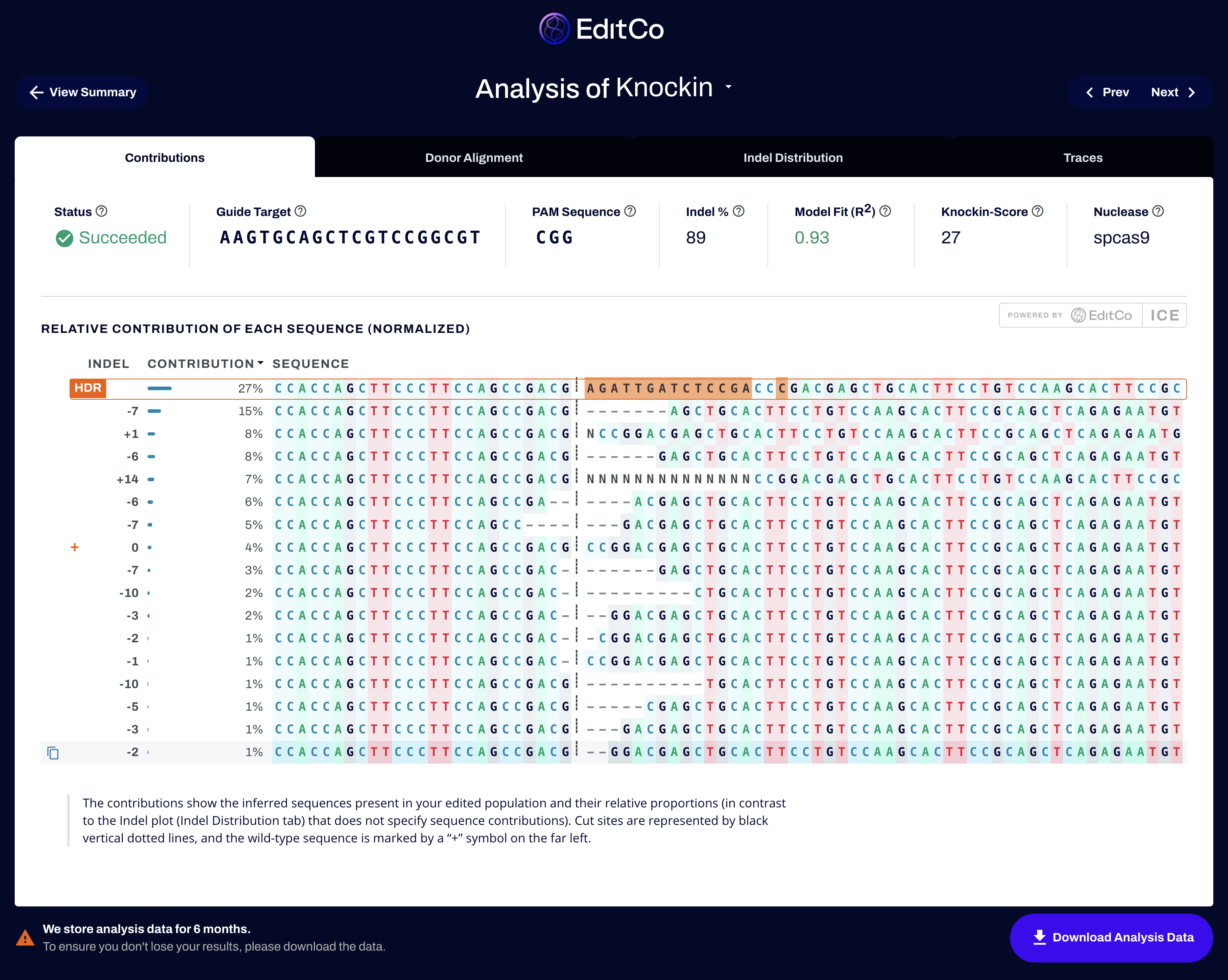

Figure 6. ICE detailed views help visualize sequencing quality, edit contributions, and trace alignments.

EditCo Gene Knockout Kits to Power Every Step of CRISPR Knockouts

Our Gene Knockout Kit (GKO) is designed to support every step of your gene editing workflow with speed, reliability, and flexibility built in.

• Faster Results: Skip the trial-and-error of guide screening. Receive your ready-to-use GKO kit in as few as 5 days.
• High Editing Efficiency: Achieve superior on-target editing and consistent knockout performance.
• Broad Compatibility: Validated in a wide range of cell types, including immortalized lines, iPSCs, and primary cells. Fully compatible with your preferred Cas9 format and delivery methods, including electroporation and lipofection.
• Simplified Ordering: Easily order through our online portal and complete your experiment with controls, SpCas9 nuclease, and our Transfection Optimization Kit.
• Guaranteed: We back every Gene Knockout Kit with our performance guarantee, your success is our priority.
• Scalable: Our XDel design is also available in arrayed CRISPR libraries, ideal for target discovery and functional genomics studies.

Choose Smart, Edit Smarter: Achieve Better Knockouts with XDel Technology

Not all CRISPR knockout kits are built the same and the difference shows up in your results. XDel technology was designed from the ground up to deliver high-efficiency knockouts with reliability, and ease. Whether you’re optimizing a screen, validating a pathway, or building cellular models, our Gene Knockout Kits (GKO) gives you the tools to do it right the first time.
